Manufacturing Process / Sequence

Training	IPC Member and On Line Training – Site License
Quote Pkg Prep	File / Documentation Generation / Verification & Control
Mfg Pkg Prep	DRI Generated / Verified Mfg Documentation Package
Purchasing	PC Boards, Electronic and Mechanical Parts, Stencils, etc
Receiving	Receiving, Inspection, Testing, Labeling & Inventory Control
Kitting	All Parts, Labels, Files, Tooling, & Documentation
Screen Printing	SMD Solder Paste Screen Printing
SMD Assembly	SMD Machine & Manual Component Placement
SMD Soldering	SMD Reflow Oven Profiling and Soldering
PTH Assembly	General Manual Thru Hole Assembly
PTH Soldering	Solder Fountain and Manual Thru Hole Soldering
Cleaning	DI Water Filtration / Purification / Assembly Cleaning
Baking	Moisture Removal, Parts, PC Boards, & Finished Assemblies
Inspection	100 % Final Inspection - Components, Soldering, Etc.
X-Ray	All BGA’s, CSP’s and Fine Pitch I.C’s / Components, Etc.
Functional Test	Full Functional Testing, Serializing, & Data Logging

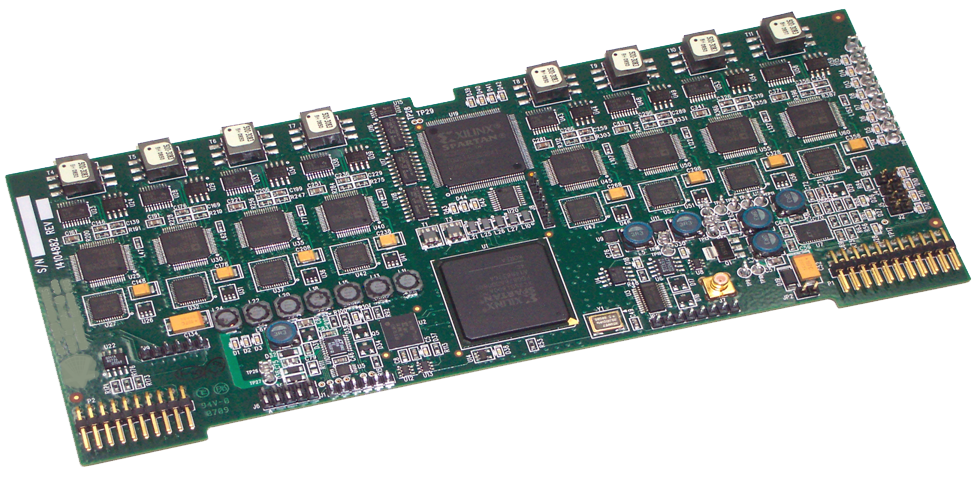

TYPICAL ASSEMBLY # 1 Top

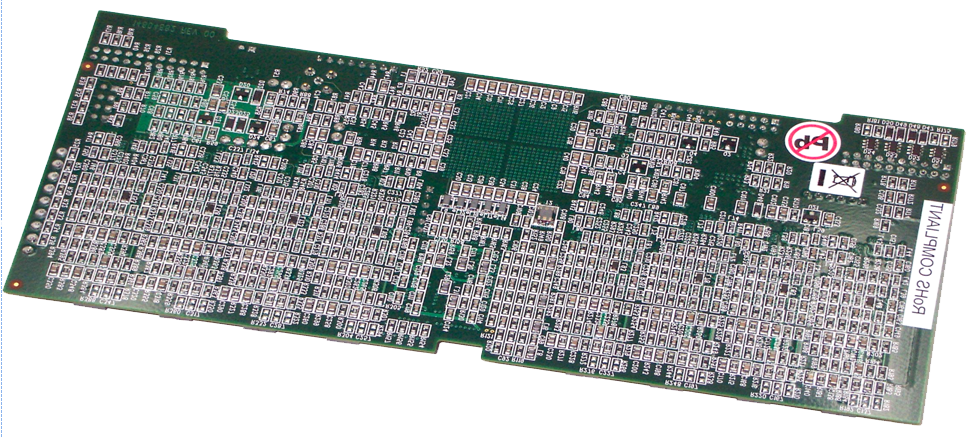

TYPICAL ASSEMBLY # 1 Bottom

Providing a Complete Array of Contract Manufacturing and Support Services
